Collaborative 5kg payload 7 axis arm industrial arc welding robot

Place of Origin : Shanghai, China (Mainland)

Brand Name : GBS

Condition : New

After-sales Service Provided : Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support

Product Name : Collaborative 5kg payload 7 axis arm industrial arc welding robot

Number of axes : 7

Max payload : 5 kg

Maximum reach : 905 mm

Pose repeatability(ISO 9283) : ±0.02mm

Teach pendant : ERP300/Android or iOS devices

Maximum speed : 2.8 m/S

Weight : 22.5 kg

Material : Aluminum alloy

Protection rating : IP54

Supply Ability : 100 Set/Sets per Month

Packaging Details : One Chinese collaborative robot 6 axis payload 6 kg reach 900 mm IP54 low cost industrial robot packing with fumigation wooden frame, WG: 60 KG Controller and other parts packing with brown box, WG: 60 KG Total WG: 120 KG(>VG)

Port : Shanghai

MOQ : 1 Set/Sets

Price : Negotiation

Contact Now

Collaborative 5kg payload 7 axis arm industrial arc welding robot

Product Description

Self weight	22.5Kg
Payload	5 Kg
Degree of freedom	7
Working radius	905mm
Joint angle of rotation	± 135°
Maximum speed	2.8 m/S
Pose repeatability	± 0.02mm
Voltage	48 V
Power	about 300W
Material	Aluminum alloy
Working temperature	0-50°C
Working environment humidity	5% ~ 95%
Protection rating	IP54
I/O port	Digital input	16
	Digital output	16
	Analog input	2
	Analog output	4
controller	Size	450x135x350mm
	Weight	15kg
	power	AC220V
	Protection rating	IP40
Teach pendant	ERP300/Android or iOS devices

Collaborative 5kg payload 7 axis arm industrial arc welding robot

Our Services

1.Swift delivery

For common parts, we can deliver the goods within 3 days

2.Original products

All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.

3.Quality Assurance

4.Technical Support

Including inspection,repair and maintenance, we can give all kinds of technical support.

5.Quickly responce

Our staffs will keep 24h online and answer your question very quickly.

Collaborative 5kg payload 7 axis arm industrial arc welding robot

Product Tags:

universal collaborative robot

high precision robotic arm

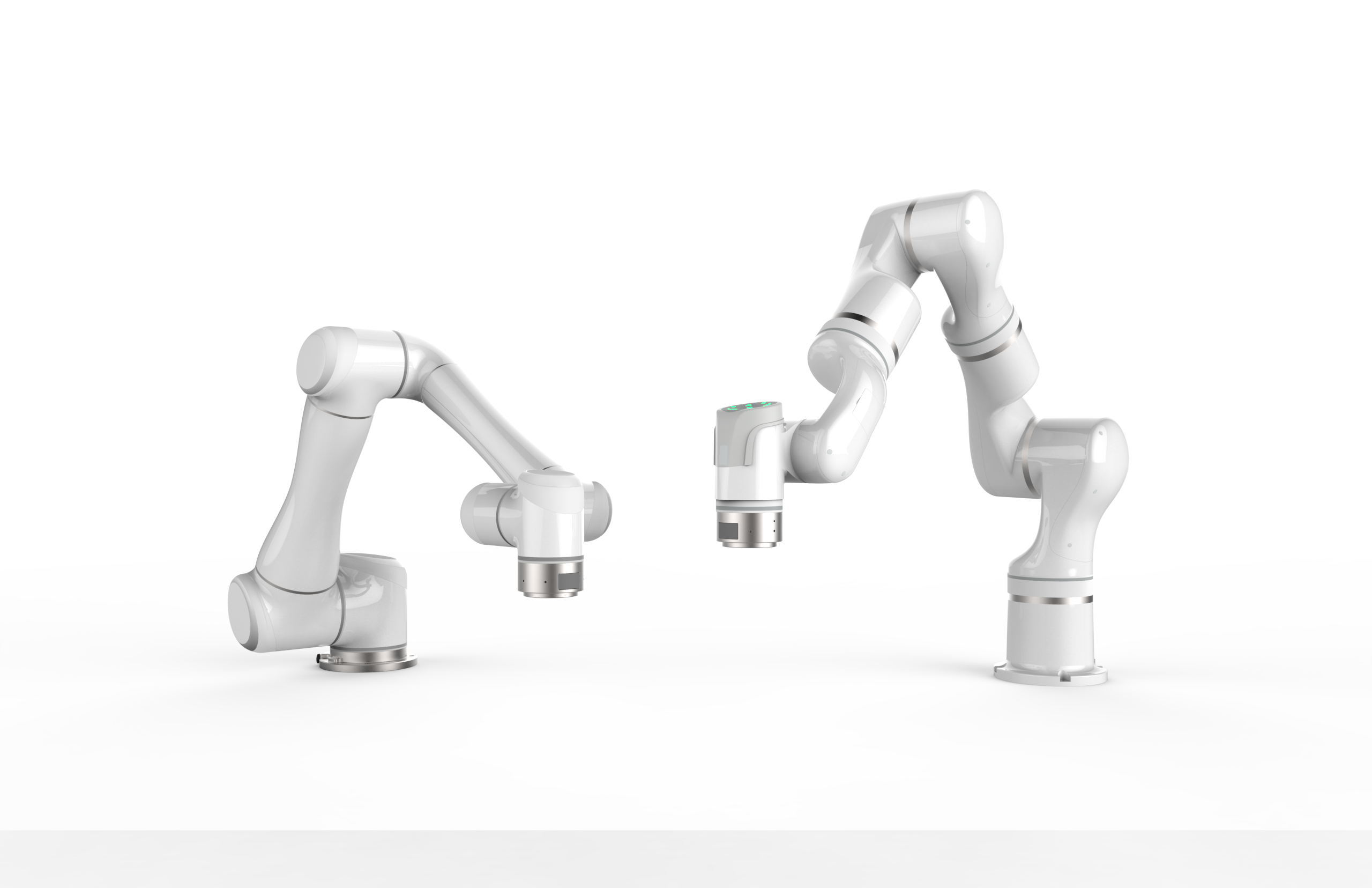

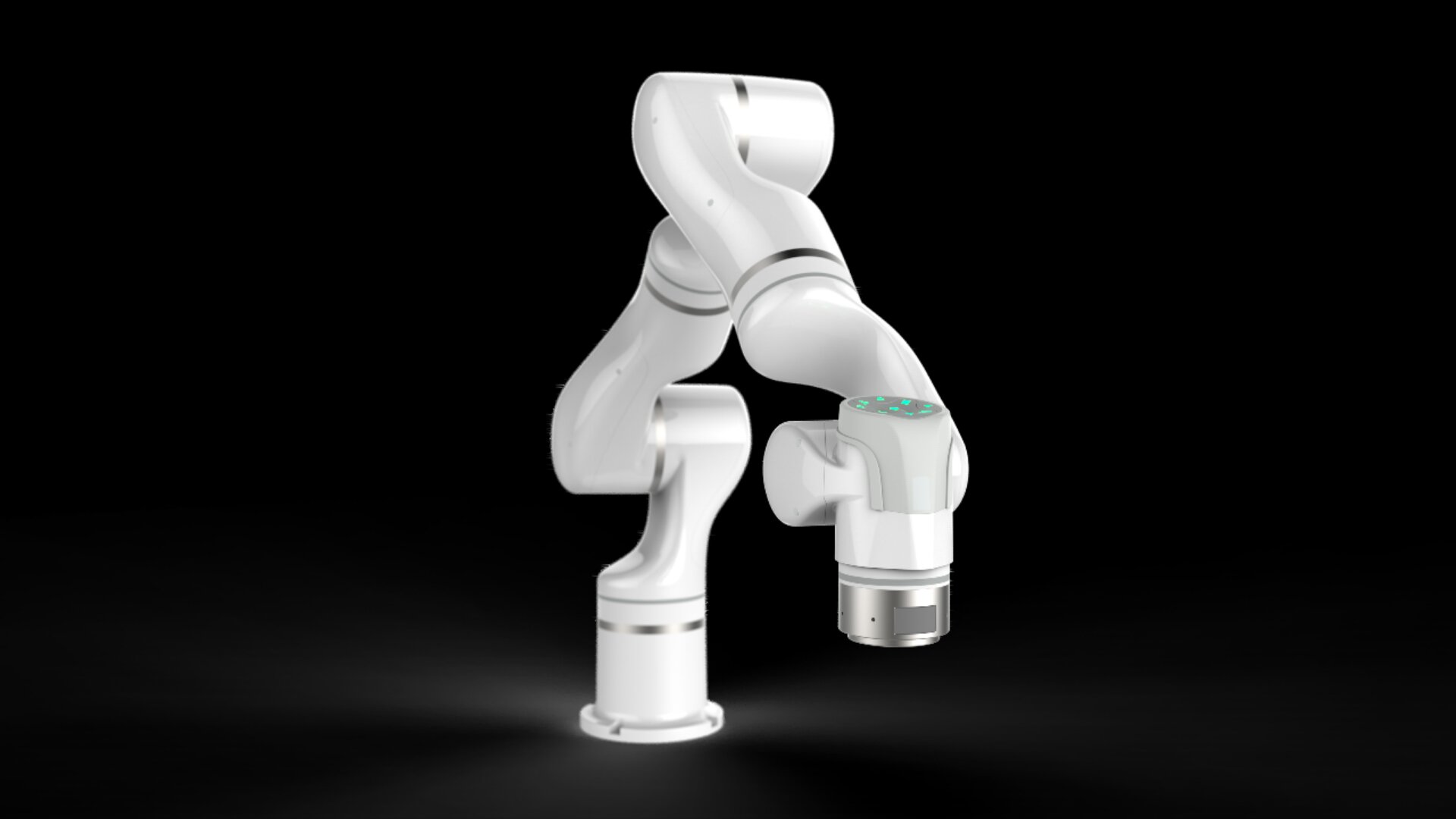

Collaborative 5kg payload 7 axis arm industrial arc welding robot Images
