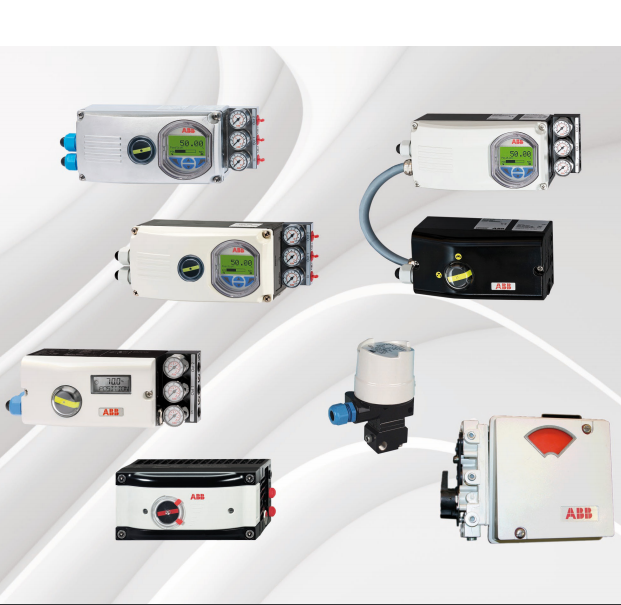

The PositionMaster EDP300 is an electronically configurable positioner with communication capabilities, designed for mounting on pneumatic linear or part-turn actuators. It features a compact design, modular construction, and an excellent cost-performance ratio. Fully automatic determination of the control parameters and adaptation to the actuator allow for considerable time savings as well as optimum control behavior.
ABB’s freedom of choice offers the right driver for the major fieldbus protocols suitable for ABB devices.
The version matrix document shows for each protocol the software revision that’s compatible to the hardware and firmware revision of the device.
- Read first
– Software/hardware revisions: Version matrix
Software and documentation:
- HART
– Software: DTM, EDD
Stand-alone tool:
ABB offers software tools that use the listed drivers in the table above for your device configuration and monitoring requirements.
The extended diagnostics feature of the PositionMaster EDP300 provides the user the opportunity to perform selectable valve performance diagnostics and to schedule Control Valve preventive maintenance as determined by the results to ensure increased system availability and to minimize unforeseen cost-intensive failures. In this document we provide examples of typical online and offline tests that can be performed by the EDP300 positioner: - Partial Stroke Test - Valve Signature - Speed over Position Test - Butterfly Diagnostic - Drag Indicator — - Valve Step Response
